Aluminium 5 Bar Tread Plate and Chequer Plate

Product Detail

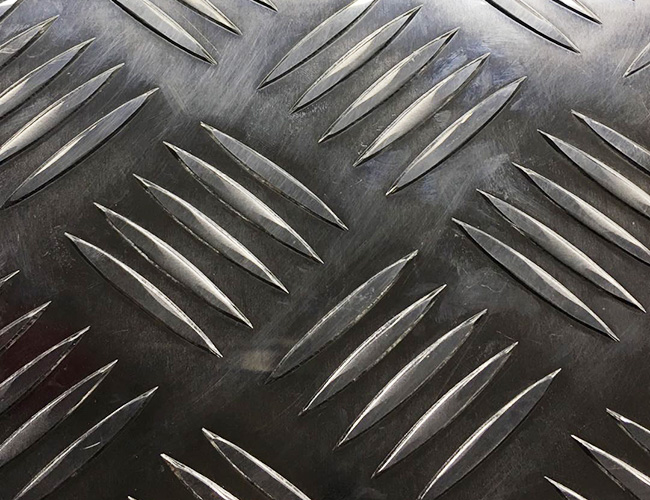

Aluminium checker plate, also known as aluminium tread plate or diamond plate, has a raised repeating diamond pattern to improve grip and traction in heavy traffic areas. Due to it’s excellent strength and corrosion resistance, it is primarily used in outdoor environments such as walkways, access ramps, trailer and truck beds or for indoor floor and wall protection, but can also be found in interior design, hospitality and retail settings for its aesthetic effect.

Aluminium 5 bar checker plate perfect for easy decoration, wall protection and chequer plate flooring.

The 5 bar tread plate is available in a range of thicknesses and custom finishes including anodised aluminium and powder coated aluminium for a beautiful finish.

Product	5 bar aluminum tread plate
Alloy	1050  1060  1100  3003  3004  3105  5052 5754 6061 6062 7072
Temper	O,H14,H24,H32,H112 Etc;T4,T651 Etc
Thickness	1.0~6.0mm
Width	500~1600mm
Length	As your requst

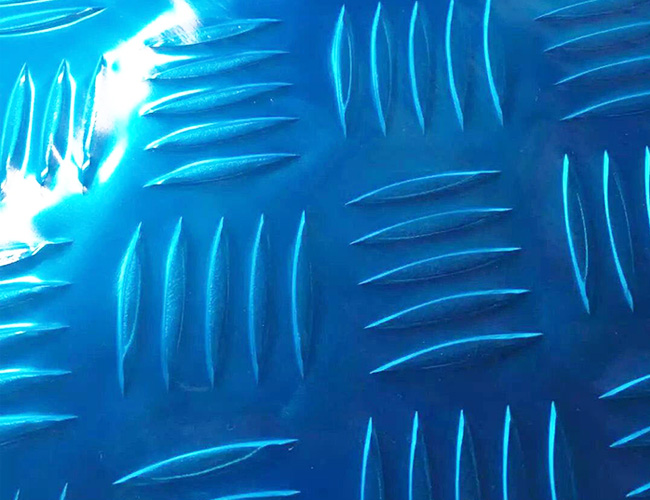

Film	Can be blue film coated or not
MOQ	3MT depend on the SPECIFICATION .
Production Process	Cold Rolled,Hot Rolled
Application	Industrial Construction,Warehouse, Roof of Large-span Steel Structure Housing ,Wall Decoration
